Made in Italy · IMS Competition Series

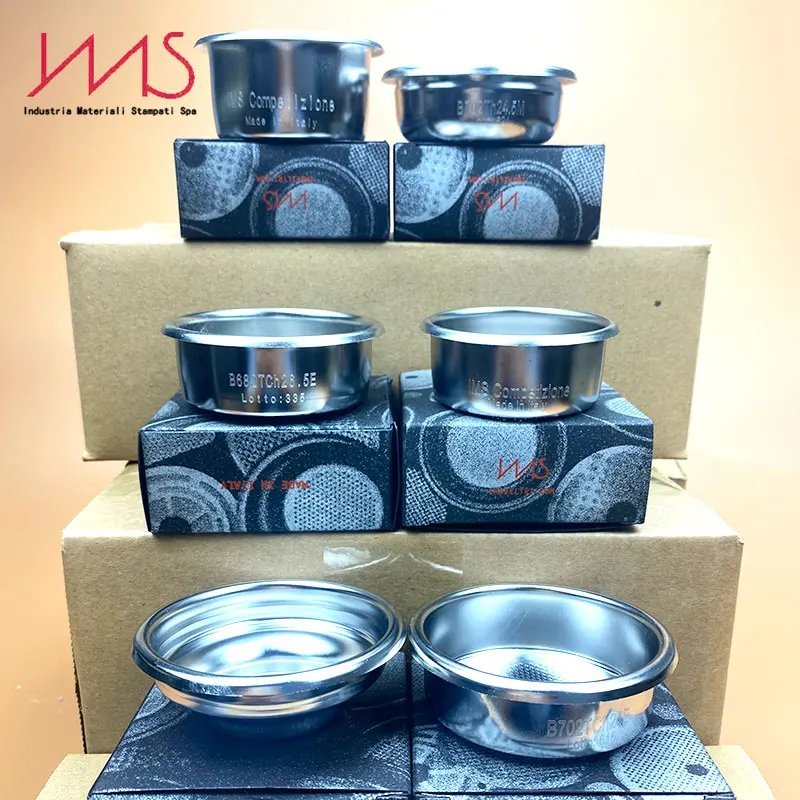

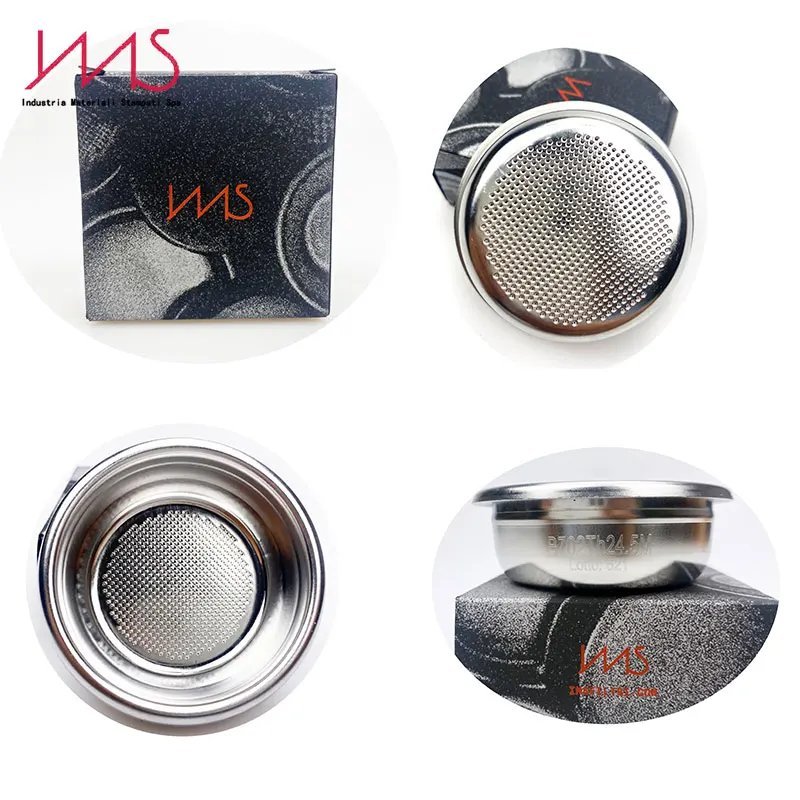

IMS Precision Portafilter Basket
The single most impactful upgrade for your espresso machine — engineered in Italy with nanometric laser perforation for a flawless, channelling-free extraction.
Why the IMS Basket?
- Laser-cut holes with perfectly uniform circular diameter — eliminates channelling and uneven extraction
- High-Polish interior finish prevents coffee oil buildup for easier cleaning and consistent flavour
- AISI 304 food-grade stainless steel — the same alloy used in professional commercial machines
- Competition-grade tolerances: tighter than OEM baskets that ship with most home machines
- Noticeable improvement in sweetness, clarity and crema thickness from the very first shot
51 mm — DL Series
Compatible machines:
De’Longhi Dedica: EC680, EC685, EC885 Arte, EC785 Metallics
De’Longhi La Specialista: Prestigio (EC9355), Arte (EC9155), Maestro (EC9565)
De’Longhi: EC820, EC850, EC860
SMEG ECF01 · HiBrew H11
22 mm · 12–14g · Single / light double
24 mm · 14–16g · Standard double Recommended
26 mm · 18–20g · Heavy double — use with bottomless portafilter only
54 mm — B62.5 Series · Breville / Sage
Compatible machines:
Breville / Sage: Barista Express (BES870), Barista Express Impress (BES876),
Barista Pro (BES878), Barista Touch (BES880), Barista Touch Impress (BES881),
Bambino (BES450), Bambino Plus (BES500), The Infuser (BES840), Duo-Temp Pro (BES810)
24 mm · 14–18g · Standard double Recommended
28 mm · 18–22g · Heavy triple — bottomless portafilter only
58 mm — B70 Series · E61 Standard & Prosumer
Compatible machines:
Gaggia: Classic (E24), Classic Pro, Classic Evo
Rancilio: Silvia, Silvia Pro, Silvia Pro X
Lelit: Mara X (PL62X), Bianca (PL162T), Elizabeth (PL92T), Victoria (PL91T)
Rocket: Appartamento, R58, Mozzafiato, Giotto
Profitec: Pro 300, Pro 500, Pro 600, Pro 700
ECM: Synchronika, Classika, Mechanika
Nuova Simonelli: Oscar II, Musica
Bezzera: BZ10, Unica
Breville / Sage: Dual Boiler (BES920), Oracle (BES980), Oracle Touch (BES990)
24.5 mm · 14–18g · Standard double — fits all standard portafilters
26.5 mm · 16–20g · Double plus — most popular for 58 mm Recommended
26 mm · 18–20g · Competition — maximum flow uniformity
28.5 mm · 20–22g · Triple — requires headroom in group head
Special Sizes
53 mm — La Spaziale, 9Barista, Solis
57 mm — Lelit Anna PL41, Anita PL042, Diana, Kate (older models only — NOT compatible with 58 mm)
58 mm narrow (commercial) — La Cimbali, Casadio, Gaggia Commercial (NOT compatible with standard 58 mm home machines)
Dose & Height Reference
| Basket Height | Dose | Brew Style | Yield |
|---|---|---|---|
| 20–22 mm | 10–14 g | Single / Classic | 1 cup ☕ |
| 24–25 mm | 14–18 g | Double (standard) | 2 cups ☕☕ |
| 26–27 mm | 17–20 g | Double Plus | 2 cups ☕☕ |
| 28–32 mm | 20–22 g | Triple | 3 cups ☕☕☕ |
Full Compatibility Table
| Model | Diameter | Height | Dose | Compatible Machines | Notes |
|---|---|---|---|---|---|
| DL2TH22E | 51 mm | 22 mm | 12–14g | De’Longhi Dedica EC680/685/885/785, SMEG ECF01, HiBrew H11 | Single / low-dose |
| DL2TH24E | 51 mm | 24 mm | 14–16g | Same as above | Standard pick for 51 mm |
| DL2TH26E | 51 mm | 26 mm | 18–20g | Same as above | Bottomless portafilter only |
| B62.52TH24E | 54 mm | 24 mm | 14–18g | Breville/Sage Barista Express, Barista Pro, Barista Touch, Bambino, Bambino Plus, Infuser, Duo-Temp Pro | Standard pick for 54 mm |
| B62.52TH28E | 54 mm | 28 mm | 18–22g | Same Breville/Sage 54 mm machines | Bottomless portafilter only |
| B642Th22N | 57 mm | 22 mm | 12–14g | Lelit Anna PL41, Anita PL042, Diana, Kate | Older Lelit only — NOT 58 mm |
| B651Th25E | 53 mm | 25 mm | 14–18g | La Spaziale 53 mm | Commercial semi-pro |
| B652Th27.5M | 53 mm | 27.5 mm | 18–20g | La Spaziale 53 mm | Mid-depth |
| B652Th32M | 53 mm | 32 mm | 20g+ | La Spaziale 53 mm | Very deep |
| B702Th24.5M | 58 mm | 24.5 mm | 14–18g | All standard 58 mm E61 — Gaggia Classic/Pro/Evo, Rancilio Silvia, Lelit 58 mm, Rocket, ECM, Profitec | Fits all standard portafilters |
| B702Th26.5M | 58 mm | 26.5 mm | 16–20g | All standard 58 mm E61 | Most popular 58 mm choice |
| B702TCh26E | 58 mm | 26 mm | 18–20g | All standard 58 mm E61 | Competition — best flow uniformity |
| B702TCh28.5E | 58 mm | 28.5 mm | 20–22g | All standard 58 mm E61 | Triple — check headroom |
| B682TCh26.5E | 58 mm narrow | 26.5 mm | 18–20g | La Cimbali, Casadio, Gaggia Commercial | Commercial narrow — NOT home machines |
Baskets with a height of 26 mm and above (e.g. DL2TH26E for De’Longhi, B62.52TH28E for Breville) are too deep for most stock portafilters due to their plastic inner frame. These sizes are designed for use with a bottomless (naked) portafilter. If you are unsure of your current portafilter depth, we recommend starting with the standard height (24–24.5 mm) for your machine.
